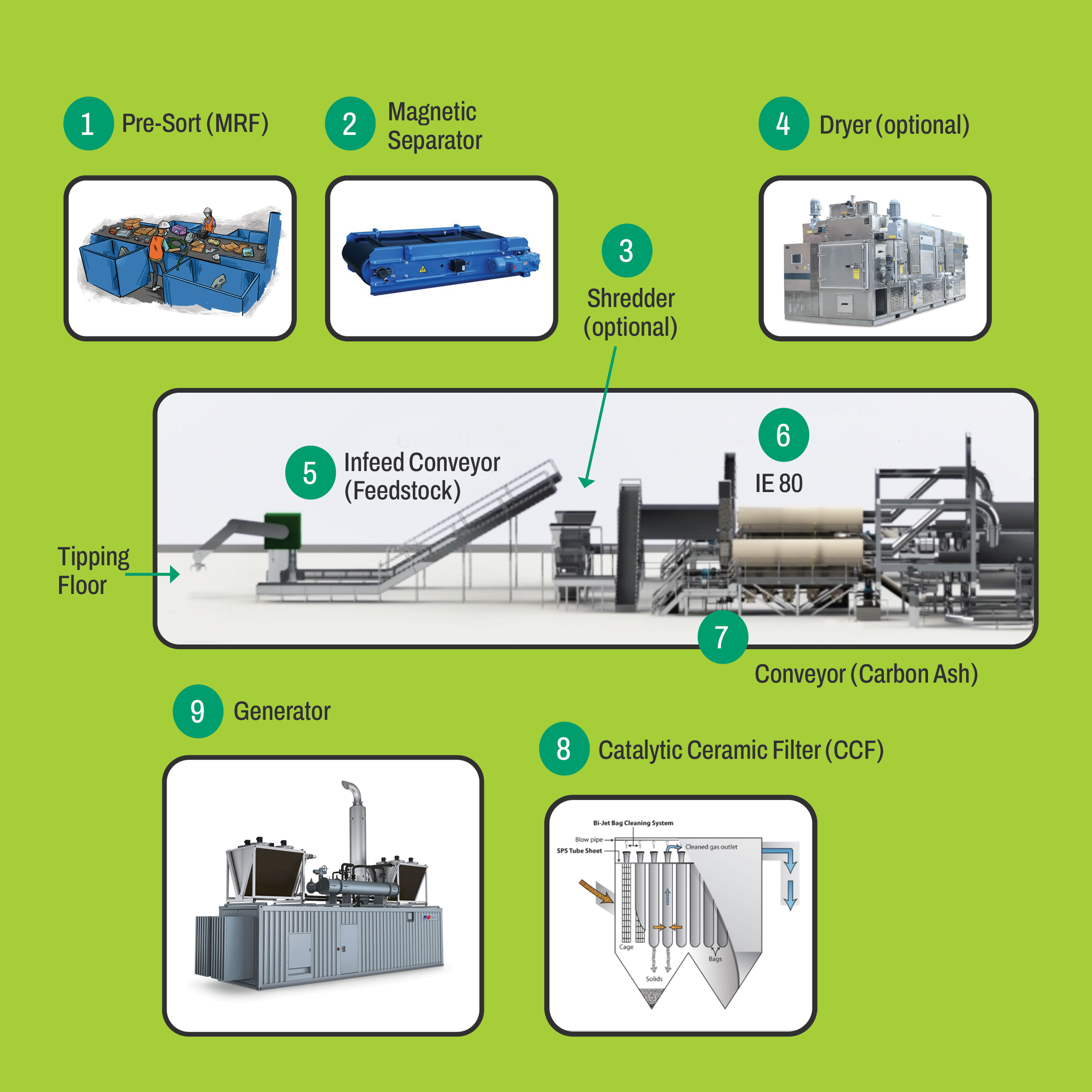

IE X 80 EQUIPMENT + PROCESS FLOW

  • 1. Pre-Sort (MRF)

  • Magnetic Separator

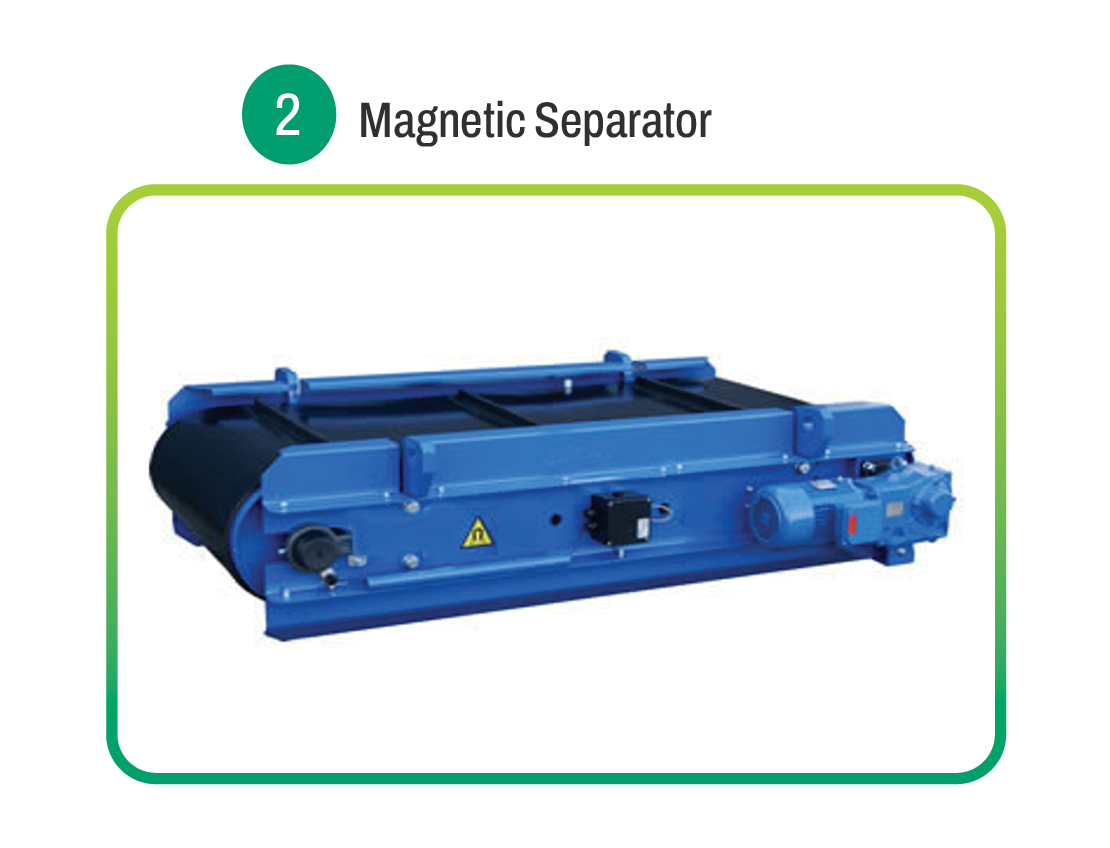

    2. Magnetic Separator

  • Dryer

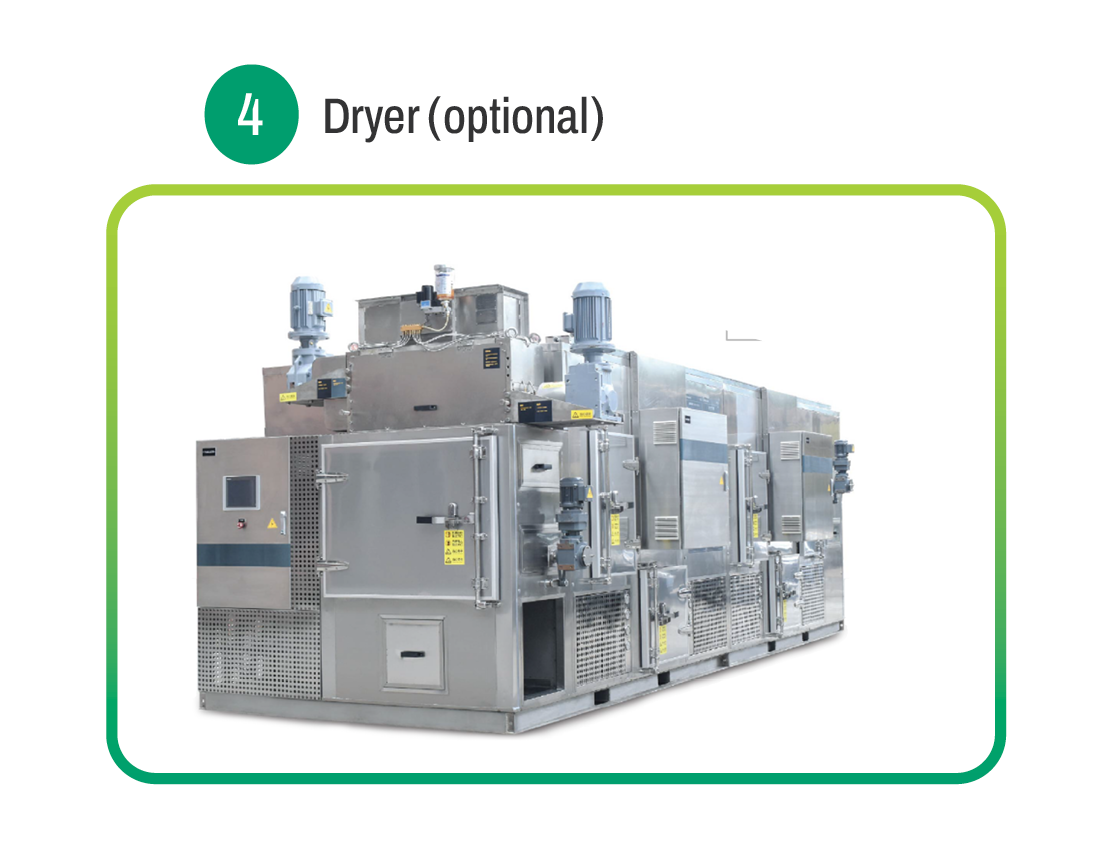

    3. Dryer (optional)

  • Shredder

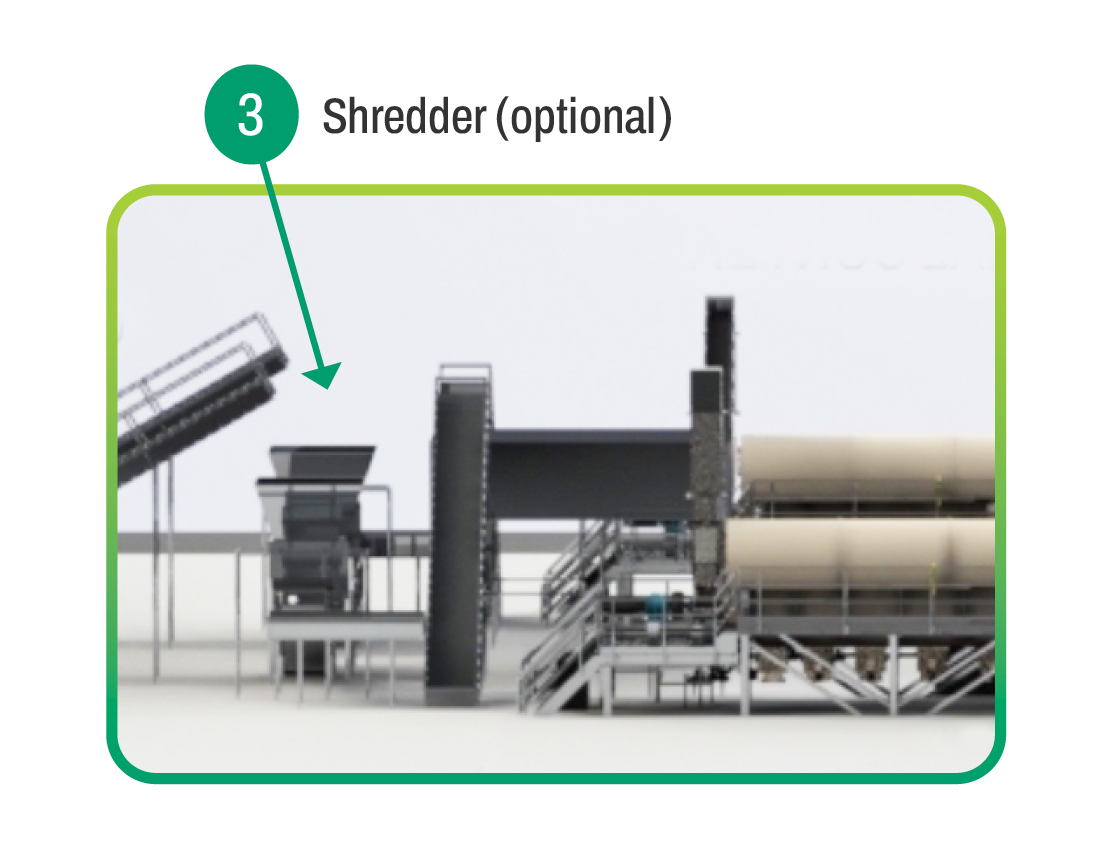

    4. Shredder (optional)

  • Infeed Conveyor

    5. Infeed Conveyor (Feedstock)

  • IE 80

    6. IE 80

  • Conveyor (Carbon Ash)

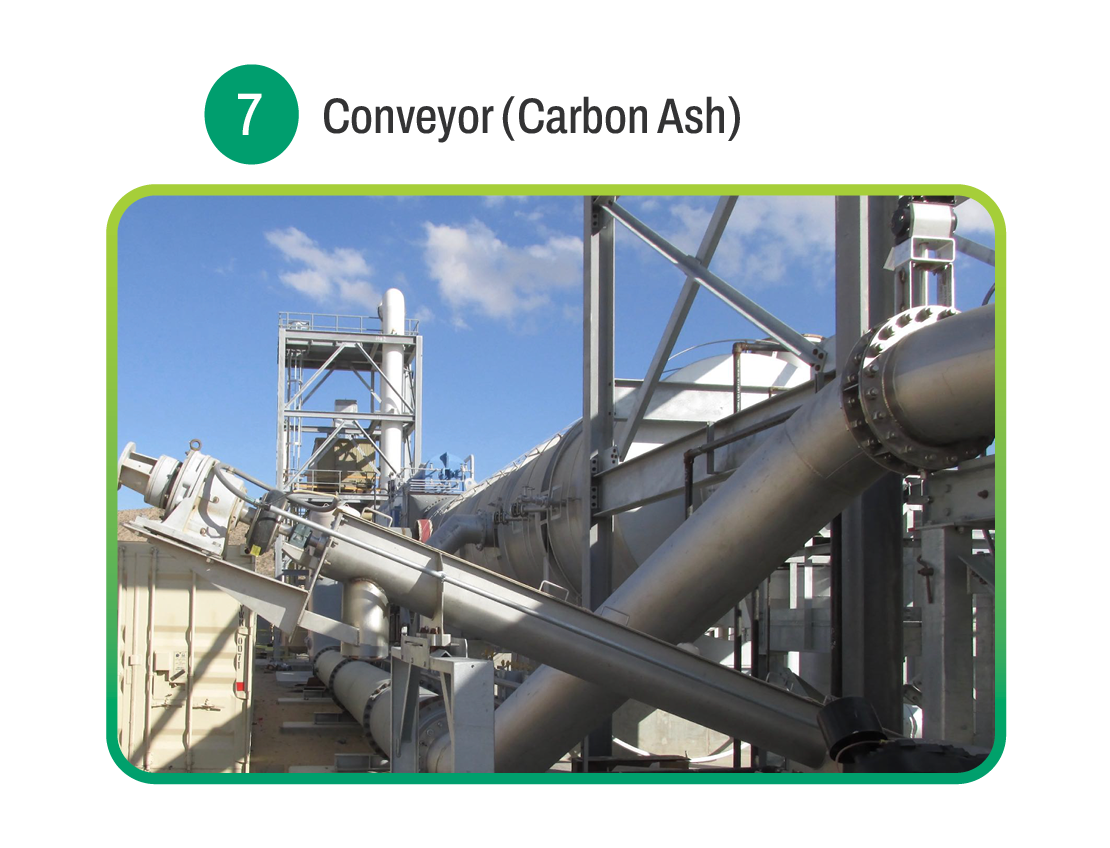

    7. Conveyor (Carbon Ash)

  • Catalytic Ceramic Filter (CCF)

    8. Catalytic Ceramic Filter (CCF)

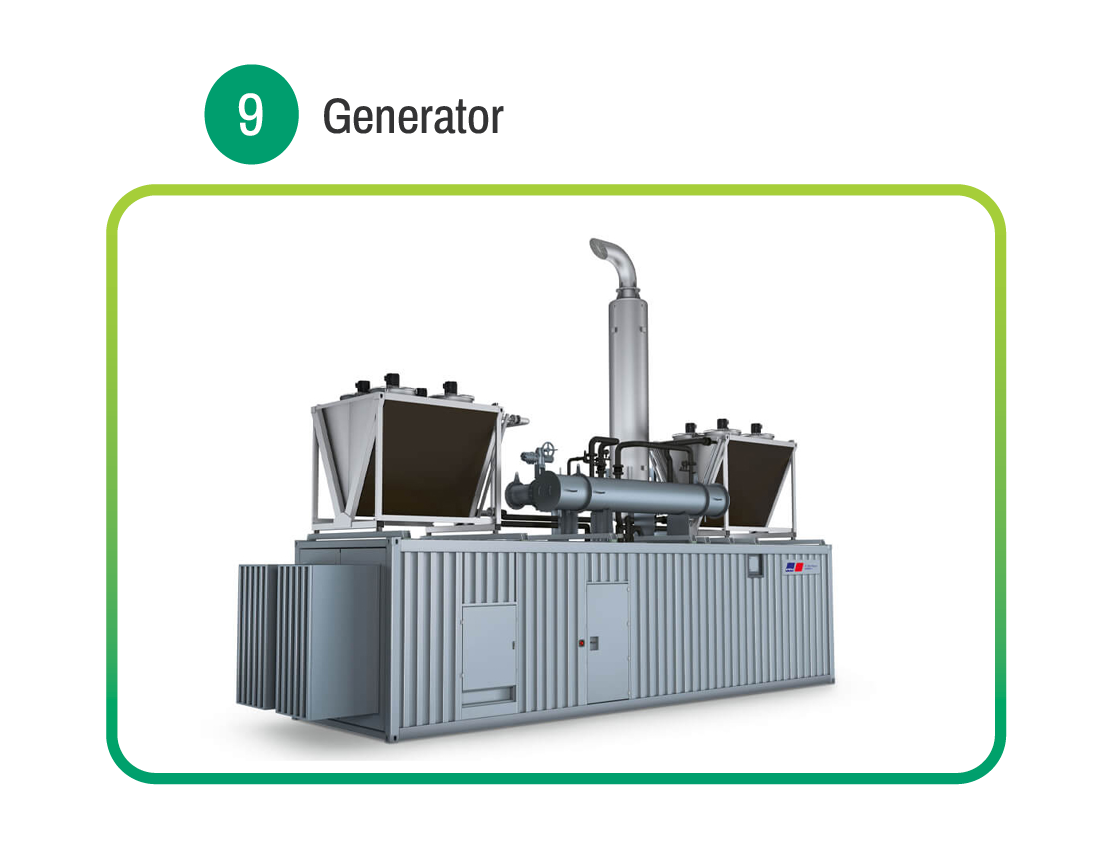

  • Generator

    Generator

ORDER OF FLOW

  • Tipping Floor

  • Infeed Conveyor to MERF (pre-sort)

  • Infeed Conveyor to Shredder (optional)

  • Infeed to Dryer/Drying Bed

  • Infeed to Thermal Converter

  • (1) Carbon exits to discharge conveyor to a container

  • OR (2) Gas (syn gas) goes through CCF to Flare or RNG refinery and/or to Electricity
